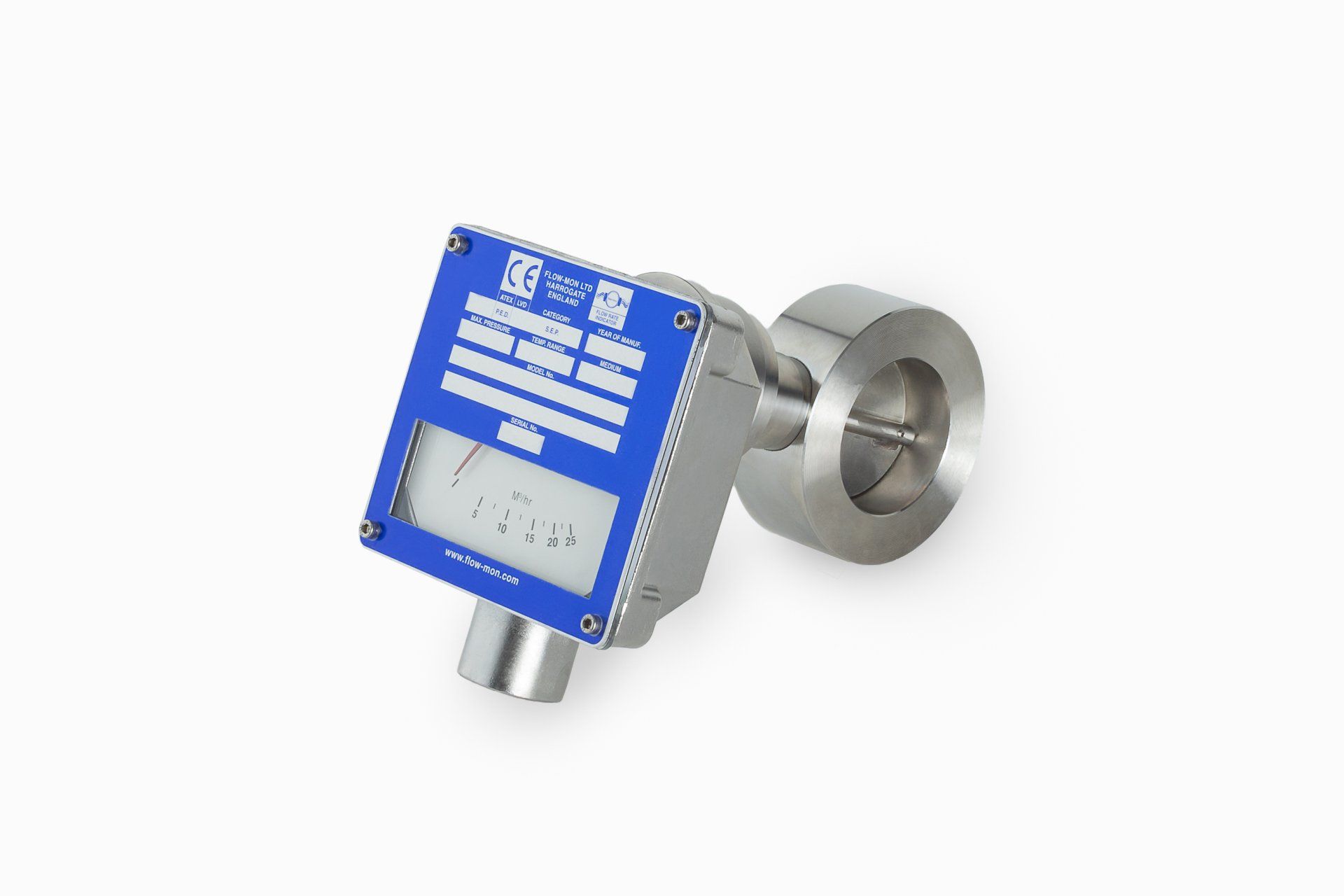

Wafer style flow rate indicator
Wafer style flow rate indicator

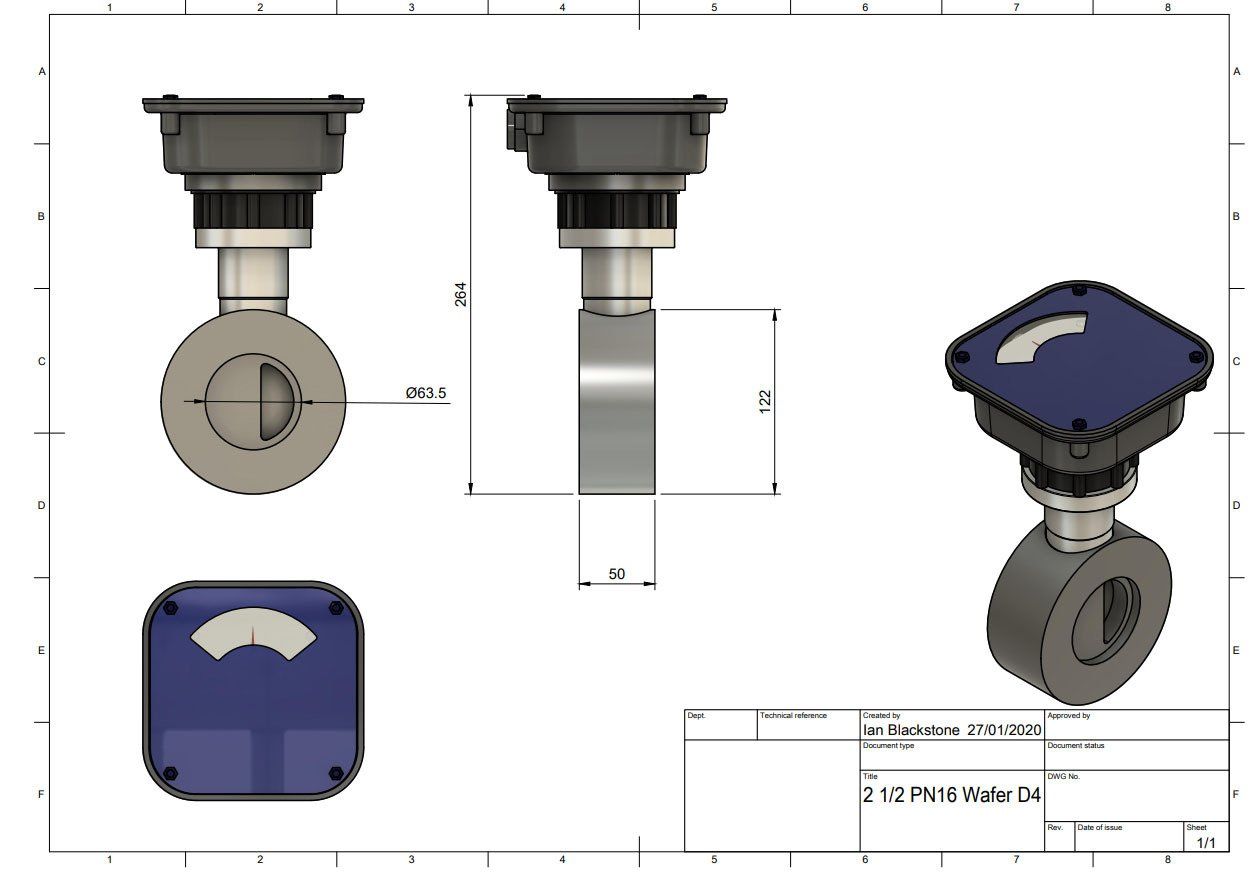

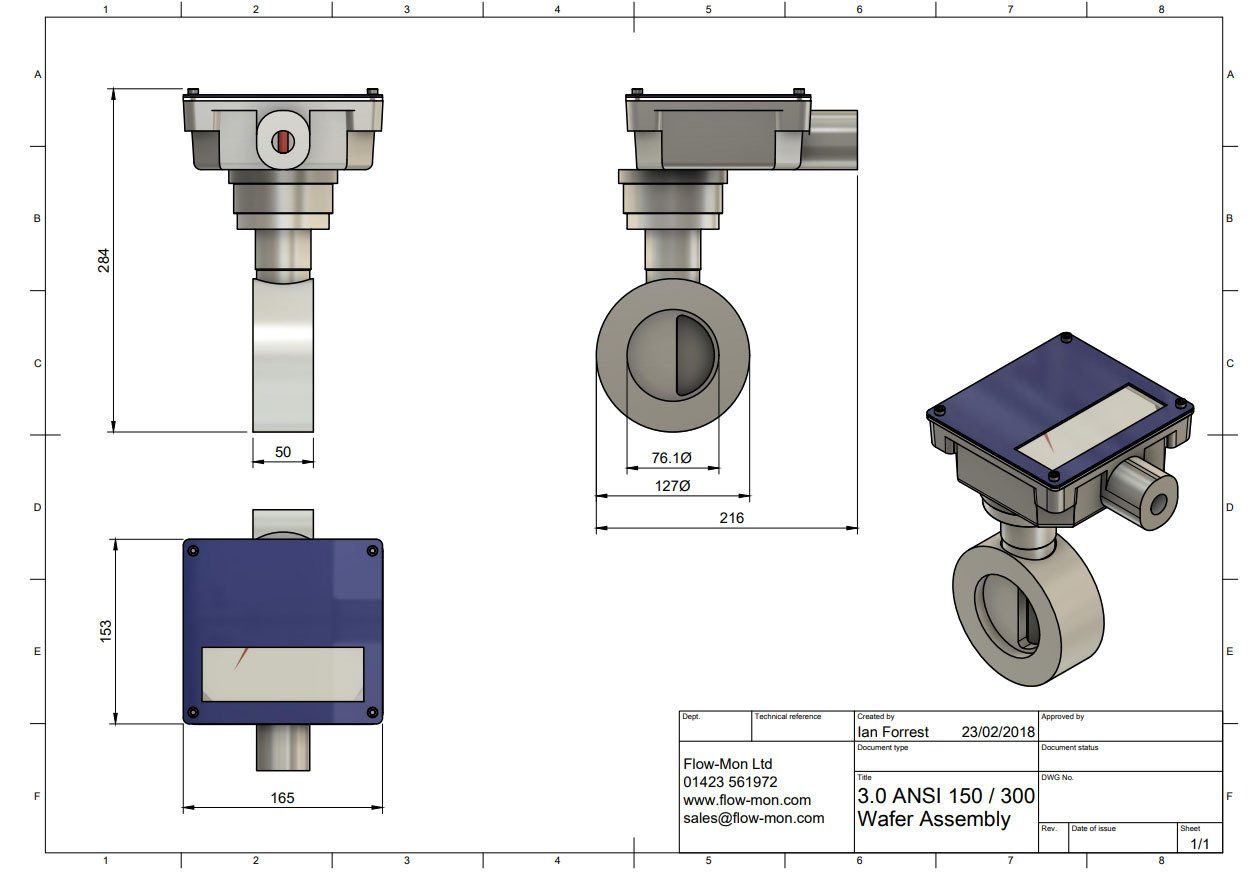

The wafer is designed to mount between two flanges which reduces the weight, size and cost.
They are robust, highly versatile and extremely reliable in the harshest of environments.
They continuously monitor flow with a local indication, through a mechanical pointer, switch, transmitter or digital rate totaliser and, can be manufactured in a variety of materials to suit each application.
Applications
- Water
- Soluble Oils (Glycols)
- Synthetic Based Fluids
- Corrosive Fluids
- Solvents
- De-Ionised Water
- Petroleum Based Fluids
- Coolants
- Paints
- Air & Gases
- Individually calibrated to any unit of measure
- Accuracy +/- 3% across full scale
- Single or dual scale
- Simple modular design
- Low pressure drop
- Viscosities up to 600cSt
- 1% rate of repeatability at switch set point
- Installed in any position
- Weatherproof enclosure box
- Capable of twice the indicated flow
